Motor Protection
Protects motors from overload, phase loss, and locked-rotor conditions. Prevents motor damage and improves equipment operating stability.

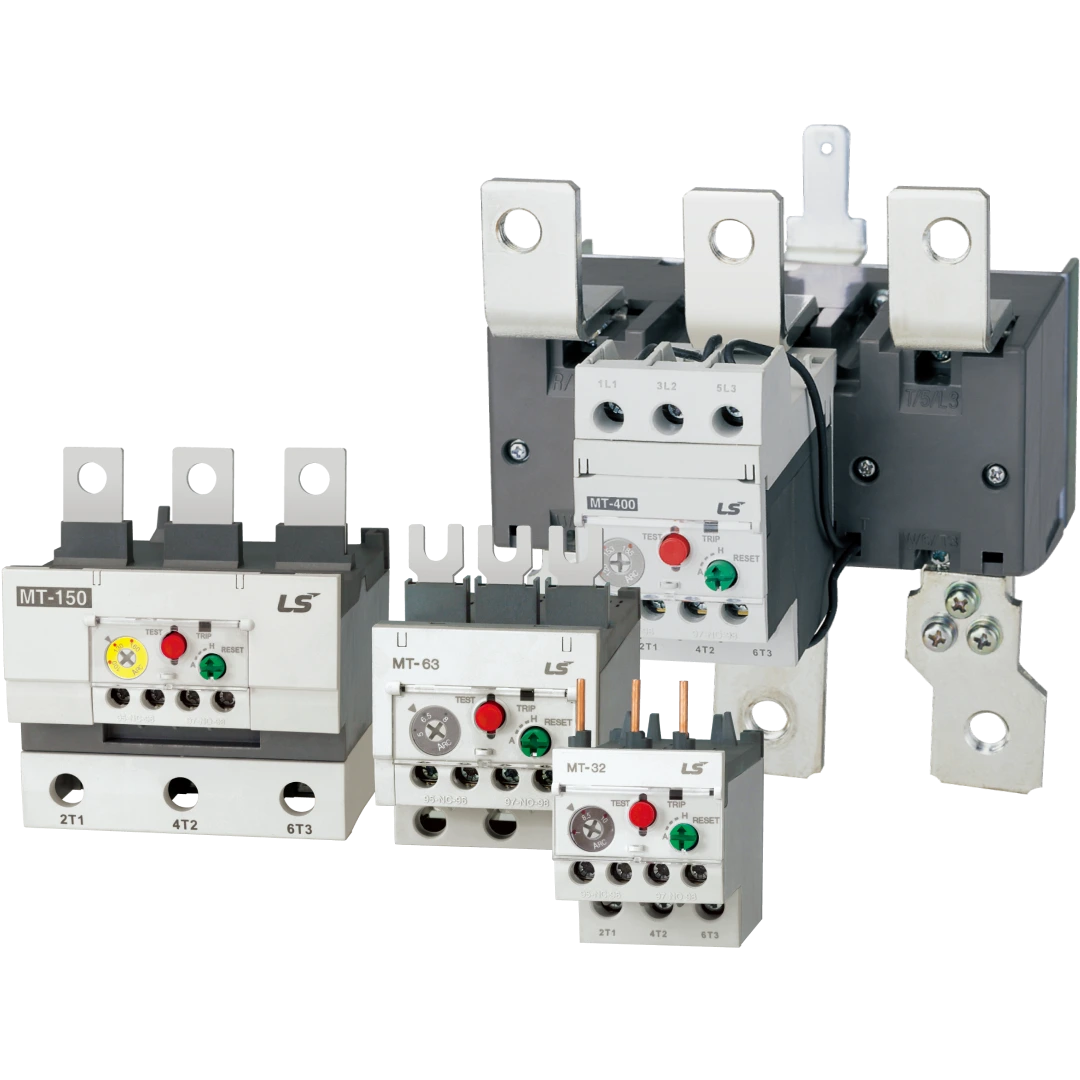

Thermal Overload Relay
The LS ELECTRIC Thermal Overload Relay is a reliable motor protection solution designed to protect motors from overload, phase loss, and locked-rotor conditions in motor circuits. With a wide current setting range and Class 10 A/20 trip characteristics, the relay supports flexible application across various motor capacities and load conditions. Field-friendly operating features improve inspection and maintenance efficiency. Designed for reliable coordination with magnetic contactors, the thermal overload relay provides protection performance for industrial motor control applications.
- Rated Operational Voltage
- 690 V AC
- Current Setting Range
- 0.1 – 800 A
- Trip Class
- Class 10A/20
Key Features
02
Flexible Settings and Applications
Provides a current setting range of 0.1 A to 800 A. Supports application across various motor capacities and load conditions.
03
Reliable Trip Protection and Response
Supports Class 10A/20 trip characteristics. Provides reliable response for general loads and long-starting-load applications.
04
Operational Convenience
Field inspection and reset functions help simplify maintenance. Easy to configure as a motor starter when combined with a magnetic contactor.
Lineup
| Item |

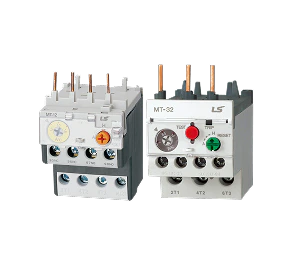

MT-12 / 32 |

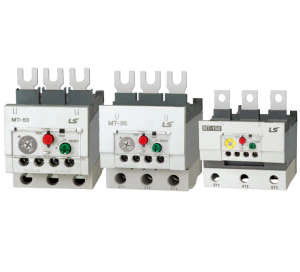

MT-63 / 95 / 150 |

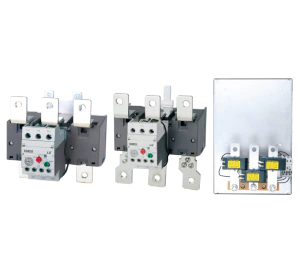

MT-225 / 400 / 800 |
|---|---|---|---|
| Pole | 3 Pole | 3 Pole | 3 Pole |
| Trip Class | Class 10A / 20 | Class 10A / 20 | Class 10A / 20 |
| Terminal Type | Screw | Screw/Lug | Screw |
| Operational Voltage | 690 V | 690 V | 690 V |
| Insulation Voltage | 690 V | Up to 690 V | 690 V |
| Impulse Withstand Voltage | 6 kV | 6 kV | 6 kV |
| Current Setting Range | 0.1~40 A | 4~150 A | 65~800 A |
Downloads
MT-12, MT-32, MT-63, MT-95, MT-150, MT-225, MT-400, MT-800 (2H/3H/3K/3D)
- [ABS]26-0548830-PDA_MT-12_cert.pdf
MT (A2L REFRIGERANTS)
- E206826-20250617-CertificateofCompliance.pdf
GTK-12M, GTH-12M, MT-12/3H, MT-12/3K, MT-12/3D
- E206826-Vol1-Sec7.pdf
MT Series MT, followed by –32, –63, –95 or -150, followed by /2H, /3H, /3K, /F2, /F3, /FK /3D, /FD, UZ Series UZ, followed by –32, -63, -95 and –150
- E206826-Vol1-Sec9-cert.pdf
Models MT followed by -225, -400, -800, may be followed by /2H, /3H, /3K or /3D
- E206826-Vol3-Sec1-20250625_Certificate of Compliance.pdf
