01
Compact Design
With slim CPU and I/O module dimensions of 27 × 98 × 90 mm, the XGT Series helps improve control panel space efficiency and supports compact machine design and efficient installation.

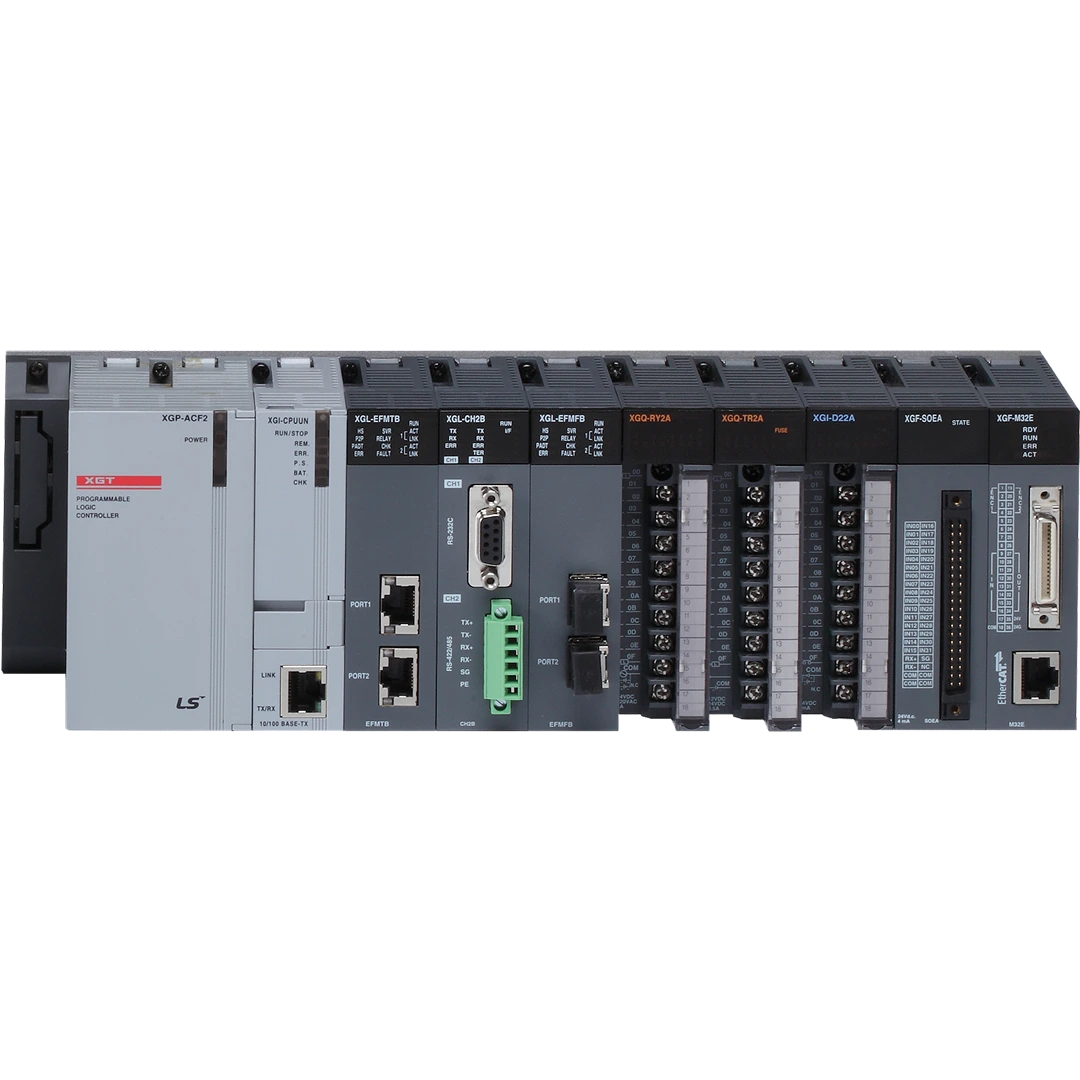

XGT
The XGT Series is a PLC platform designed for a wide range of industrial applications, offering high-speed processing performance, strong connectivity based on open networks, and flexible system expansion. As an integrated solution covering control, motion, and IT/OT environments, the XGT Series helps improve productivity and reliability while supporting more efficient maintenance through enhanced engineering and diagnostic functions.
- Compact Size
- Module dimensions: 27 × 98 × 90 mm.
- Flexible Expansion
- Up to 7 expansion stages / 96 modules
- High-Speed Motion & Networking
- With XGI-CPUZ7: 6.5 ns processing, up to 32 axis, and up to 64 slaves
Key Features
02
Flexible System Expansion
Depending on the model and configuration, the system supports up to 7 expansion stages and up to 96 modules, making it suitable for applications ranging from small machines to mid- and large-scale systems.
03
Network Connectivity and Integrated Control
Supports industrial Ethernet and various network environments, providing flexible connectivity between upper-level systems and field devices for integrated control.
04
Improved Maintenance Convenience
XGI-CPUZ supports maintenance-focused functions such as a built-in UI, SD memory-based backup and restore, multi-user access, and an Ethernet Packet Logger.
Lineup
| Model | Performance | Max. I/O Points | Built-in Ethernet | Built-in EtherCAT |
|---|---|---|---|---|
| XGI-CPUUN | 8.5 ns/step processing speed 2MB program capacity |
6,144 points (7 expansion modules) | Loader service Server (XGT protocol, Modbus TCP/IP) |
- |
| XGC-CPUX7 | 1.6 ns/step processing speed 10MB program capacity |
6,144 points (7 expansion modules) | Loader service Server (XGT protocol, Modbus TCP/IP) Socket function blocks |
Up to 32-axis motion control Up to 64 EtherCAT slaves |
Downloads
Catalog for Factory Automation
- Factory Automation_Catalog_EN_202406.pdf (9.77KB)
XGT Series Catalog
- XGT Series_EN_202407.pdf (34.79KB)
XGI CPUZ Catalog
- XGI-CPUZ_EN_202207.pdf (6.00KB)
XGT EtherCAT Positioning Module User Manual
2.4
- XGF-PNxB_manual_V2.4_EN_202508.pdf (21.51KB)
XGT Isolated Thermocouple Input Module (XGF-TC4S) User Manual
V1.5
- XGF-TC4S_Manual_V1.5_202508_EN.pdf (4.37KB)
