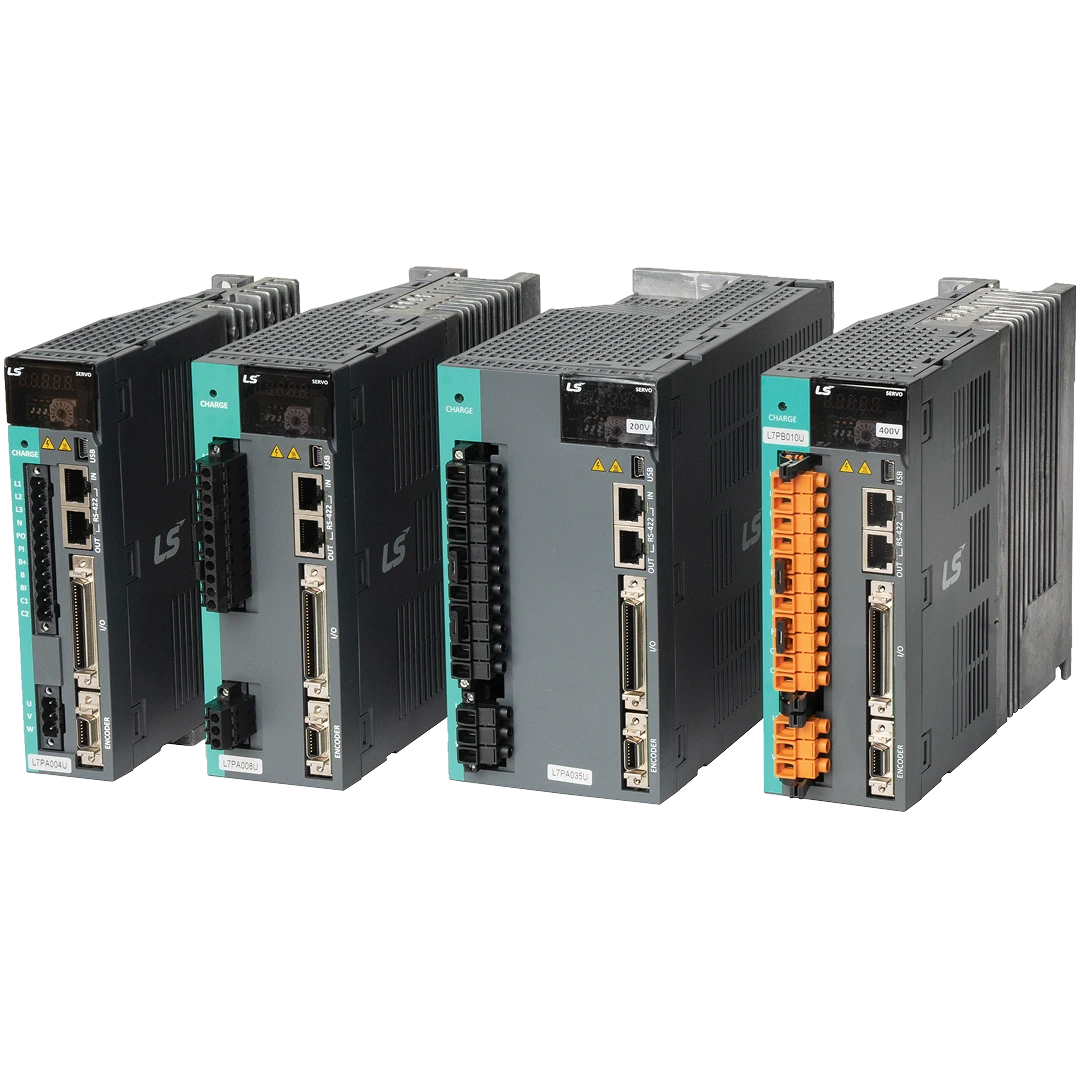

L7P Servo Drives

The L7P is a pulse command-type industrial servo drive with a built-in single-axis positioning module. It can receive upper-level commands through multiple methods, including pulse, digital I/O, and Modbus RTU. The drive can also operate independently without an upper-level controller. It supports rotary, direct, and linear motors, as well as third-party motors, and has been widely selected by customers over many years as a reliable servo drive solution.

Rated Output: 100W ~ 15kW
Rated Voltage: 3Φ 200 ~ 230VAC, 50~60 Hz 3Φ 380 ~ 480VAC, 50~60 Hz
Command Type: Pulse, Digital I/O, Modbus RTU

Key Features

Multiple Upper-Level Command Methods

Supports multiple upper-level command methods, including pulse, digital I/O, and Modbus RTU via RS-422.

Built-in Single-Axis Positioning Module

Enables position control without a separate upper-level positioning module and allows standalone drive operation.

Enhanced Control Performance

Includes improved control bandwidth, a 4-stage notch filter, and real-time gain adjustment.

Wide Motor Support

Supports rotary, direct, and linear motors, as well as third-party motors.

Connect with Our Product Expert

Reach out to our dedicated specialist for technical inquiries and product support.

sales.us@lselectricamerica.com

Send an Inquiry

Lineup

Power Supply	3Φ 200 ~ 230VAC, 50~60Hz	3Φ 380 ~ 480VAC, 50~60Hz
Rated Output	100W ~ 15kW	100W ~ 15kW
Rated Current	1.4 ~ 76 Arms	3.7 ~ 39 Arms
Peak Current	4.2 ~ 190 Arms	11.1 ~ 97.5 Arms

Downloads

CatalogsJun 12, 2025

Catalog for Factory Automation

Factory Automation_Catalog_EN_202406.pdf (9.77KB)

CatalogsJun 10, 2025

Xmotion Servo System Catalog

Xmotion_Catalog_EN_202402.pdf (85.31KB)

ManualsNov 17, 2023

L7P user manual

L7P_EN_Ver1.5_230802.pdf (13.83KB)

SoftwareApr 13, 2026

XGT Drive CM software

LS ELECTRIC DriveCM - Ver1.02.1_x64.msi (70.47KB)
LS ELECTRIC DriveCM - Ver1.02.1_x86.msi (64.46KB)
DriveCM Ver 1.02.1 Release note.pdf (356B)
[Win7] LS ELECTRIC DriveCM - Ver1.02.1_x64.msi (70.48KB)

DrawingsNov 17, 2023

L7P Series CAD

L7P Series_CAD_2D.zip (2.93KB)
L7P Series_CAD_3D.zip (66.52KB)
