01
High-Performance Encoder
Equipped with a 23-bit high-resolution encoder, with a batteryless encoder available as an option.
Servo Motors

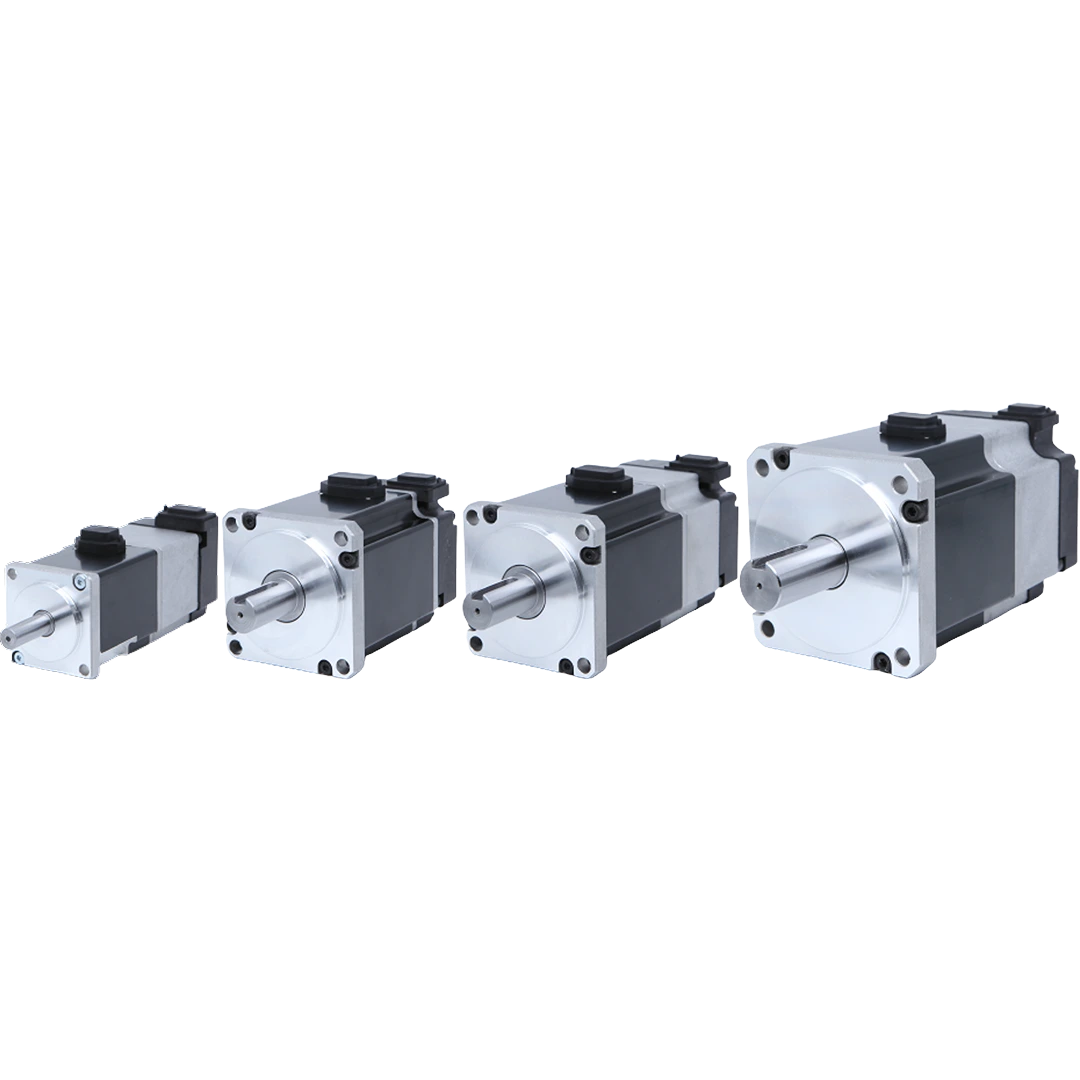

The APM-E Motor is a high-precision industrial servo motor with a built-in high-resolution encoder. The lineup includes models suitable for 200 V, 400 V, and 48 V operation, with high-capacity models available up to 45 kW. Compared with previous LS ELECTRIC models, the motor length has been reduced by more than 20%, supporting more compact machine design. A batteryless encoder is also available as an option.
- Rated Output
- 50W ~ 15kW
- Rated Voltage
- 48V, 200V, 400V
- Flange Length
- □40 ~ □220 mm
Key Features
02
Compact Design
Motor length is reduced by 20% compared with previous LS ELECTRIC models.
03
Increased Maximum Load Ratio
Supports operation up to 350% of rated load for models rated 750 W or lower.
04
Simplified Cabling
Uses an integrated power and brake connector, excluding some models.
Lineup
| Rated Voltage | 48V | 200V | 400V |
|---|---|---|---|
| Rated Output (Range) | 50W - 750W | 50W - 15kW | 300W - 15kW |
| Rated Torque (Range) | 0.16 Nm - 2.39 Nm | 0.16 Nm - 95.48 Nm | 2.86 Nm - 95.49 Nm |
| Flange Size (Range) | □40mm - □80mm | □40mm - □220mm | □40mm - □220mm |
Options
| Encoder | 23bit Single Turn Absolute, 16bit Multi Turn Absolute |
|---|---|
| Shape of Shaft End | Straight, One Side Rount Key |
| Brake | None, Attached |
| Oil Seal | None, Attached |
Downloads
Xmotion Servo System Catalog
- Xmotion_Catalog_EN_202402.pdf (85.31KB)
XGT Servo SmartSIZER Software
- SmartSizer Program User’s Manual.pdf (3.14KB)
- Setup_SmartSizer_v1.0.1.9.zip (51.10KB)
FGP Series Servo Motor CAD
- FGP Series OutLIne 2D_Non-Key Type.zip (5.47KB)
- FGP Series OutLIne 3D_Non-Key Type.zip (40.85KB)
- FGP OutLine 2D_Key Type.zip (2.90KB)
- FGP OutLine 3D_Key Type.zip (40.80KB)
FFP Series Servo Motor CAD
- FFP Series OutlLine 2D_Non-Key Type.zip (805B)
- FFP Series OutlLine 3D_Non-Key Type.zip (26.45KB)
- FFP Series OutLine 3D_Key Type.zip (26.67KB)
- FFP Series OutLine 2D_Key Type.zip (828B)
FEP Series Servo Motor CAD
- FEP Series OutLine 3D_Non Key Type.zip (20.66KB)
- FEP Series OutLine 2D_Non Key Type.zip (764B)
- FEP Series OutLine 3D_Key Type.zip (20.85KB)
- FEP Series OutLine 2D_Key Type.zip (772B)
